Microbe-Set Enrichment Analysis
Giulio Benedetti
University of Turkugiulio.benedetti@utu.fi
12 May 2026
Source:vignettes/msea.Rmd
msea.RmdIncorporate relational knowledge in a dataset
# Import dataset
data("Tengeler2020", package = "mia")
tse <- Tengeler2020
tse <- agglomerateByRank(tse, rank = "Genus")
#> Duplicated labels were made unique.
tse <- transformAssay(tse, method = "relabundance")
tse
#> class: TreeSummarizedExperiment
#> dim: 49 27
#> metadata(1): agglomerated_by_rank
#> assays(2): counts relabundance
#> rownames(49): [Clostridium]_innocuum_group
#> [Eubacterium]_coprostanoligenes_group ... uncultured_2
#> uncultured_bacterium
#> rowData names(6): Kingdom Phylum ... Family Genus
#> colnames(27): A110 A12 ... A35 A38
#> colData names(4): patient_status cohort patient_status_vs_cohort
#> sample_name
#> reducedDimNames(0):
#> mainExpName: NULL
#> altExpNames(0):
#> rowLinks: a LinkDataFrame (49 rows)
#> rowTree: 1 phylo tree(s) (49 leaves)
#> colLinks: NULL
#> colTree: NULLSingle-module analysis
data("butyrate", package = "ariadne")
butyrate
#> taxname cpd cpd.name
#> 1 Butyricimonas C00246 butyrate
#> 2 Odoribacter C00246 butyrate
#> 3 Agathobacter C00246 butyrate
#> 4 Anaerobutyricum C00246 butyrate
#> 5 Eubacterium ventriosum C00246 butyrate
#> 6 Anaerostipes C00246 butyrate
#> 7 Butyrivibrio C00246 butyrate
#> 8 Coprococcus C00246 butyrate
#> 9 Roseburia C00246 butyrate
#> 10 Shuttleworthia C00246 butyrate
#> 11 Butyricicoccus C00246 butyrate
#> 12 Faecalibacterium C00246 butyrate
#> 13 Flavonifractor C00246 butyrate
#> 14 Pseudoflavonifractor C00246 butyrate
#> 15 Oscillibacter C00246 butyrate
#> 16 Subdoligranulum C00246 butyrate
tse <- addModules(tse, butyrate, key = "Genus", as = "names")
modules <- agglomerateByModule(tse, by = "rows", group = "butyrate")
modules
#> class: TreeSummarizedExperiment
#> dim: 1 27
#> metadata(1): agglomerated_by_rank
#> assays(2): counts relabundance
#> rownames(1): butyrate
#> rowData names(0):
#> colnames(27): A110 A12 ... A35 A38
#> colData names(4): patient_status cohort patient_status_vs_cohort
#> sample_name
#> reducedDimNames(0):
#> mainExpName: NULL
#> altExpNames(0):
#> rowLinks: NULL
#> rowTree: NULL
#> colLinks: NULL
#> colTree: NULL

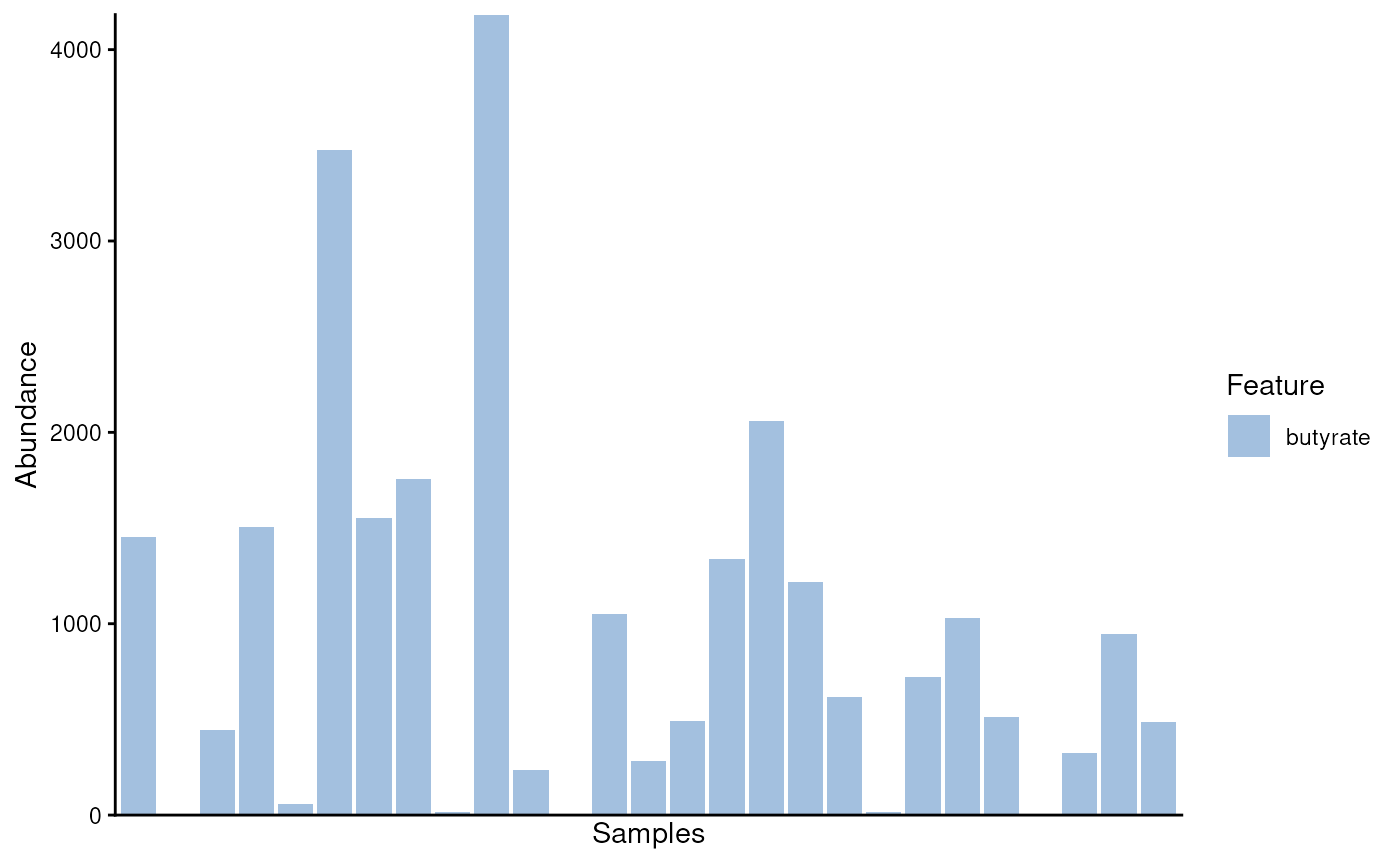

plotAbundance(modules)
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_bar()`).

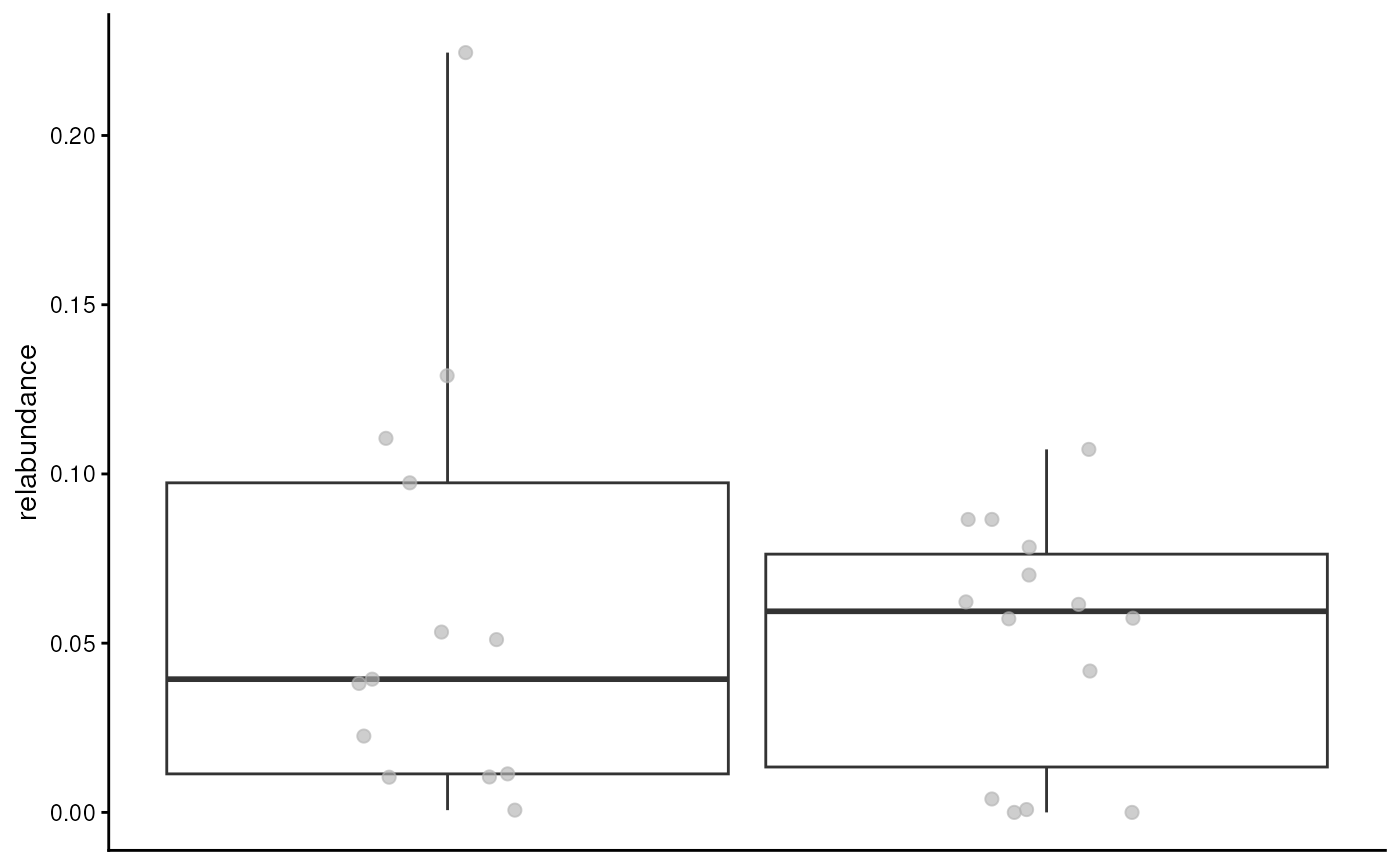

plotBoxplot(modules, assay.type = "relabundance", group.by = "patient_status")
Multi-module analysis
graph <- ariadne()
searchPath(graph, taxname ~ bugsig)
#> Path 1:
#> taxname -(BugSigDB)-> bugsig
tax2bugsig <- weavePath(graph, taxname ~ bugsig, init = rowData(tse)$Genus)
#> taxname -(BugSigDB)-> bugsig
#> Warning: names for 871 bugsig ids not found.
head(tax2bugsig)
#> taxname bugsig bugsig.name
#> 1 Bacteroides 20603222/1/1 severely-autistic_vs_non-sibling-control_UP
#> 2 Parabacteroides 20603222/1/1 severely-autistic_vs_non-sibling-control_UP
#> 3 Bacteroides 20613793/1/2 Case-1_vs_Control-1_DOWN
#> 4 Parabacteroides 20613793/1/2 Case-1_vs_Control-1_DOWN
#> 5 Bacteroides 20613793/2/1 Case-2_vs_Control-2_UP
#> 6 Faecalibacterium 20613793/2/1 Case-2_vs_Control-2_UP
mod.names <- levels(tax2bugsig$bugsig.name)
adhd.mods <- mod.names[grepl("ADHD", mod.names)]
adhd.mods
#> [1] "ADHD_vs_Controls_DOWN"
#> [2] "ADHD_vs_Controls_UP"
#> [3] "ADHD_vs_healthy-control_DOWN"
#> [4] "Medicated-ADHD-(ADHD-+-MPH)_vs_Unmedicated-ADHD_DOWN"
#> [5] "Medicated-ADHD-(ADHD-+-MPH)_vs_Unmedicated-ADHD_UP"
#> [6] "Unmedicated-Attention-deficit-hyperactivity-disorder-(ADHD)_vs_Healthy-controls_DOWN"
tse <- addModules(tse, tax2bugsig, key = "Genus", as = "names")
#> Warning in dcast.data.table(modules, widen_form, value.var = "cov", fill = 0):
#> 'fun.aggregate' is NULL, but found duplicate row/column combinations, so
#> defaulting to length(). That is, the variables [taxname, bugsig.name] used in
#> 'formula' do not uniquely identify rows in the input 'data'. In such cases,
#> 'fun.aggregate' is used to derive a single representative value for each
#> combination in the output data.table, for example by summing or averaging
#> (fun.aggregate=sum or fun.aggregate=mean, respectively). Check the resulting
#> table for values larger than 1 to see which combinations were not unique. See
#> ?dcast.data.table for more details.
modules <- agglomerateByModule(tse, by = "rows", group = adhd.mods)
modules
#> class: TreeSummarizedExperiment
#> dim: 6 27
#> metadata(1): agglomerated_by_rank
#> assays(2): counts relabundance
#> rownames(6): ADHD_vs_Controls_DOWN ADHD_vs_Controls_UP ...
#> Medicated-ADHD-(ADHD-+-MPH)_vs_Unmedicated-ADHD_UP
#> Unmedicated-Attention-deficit-hyperactivity-disorder-(ADHD)_vs_Healthy-controls_DOWN
#> rowData names(0):
#> colnames(27): A110 A12 ... A35 A38
#> colData names(4): patient_status cohort patient_status_vs_cohort
#> sample_name
#> reducedDimNames(0):
#> mainExpName: NULL
#> altExpNames(0):
#> rowLinks: NULL
#> rowTree: NULL
#> colLinks: NULL
#> colTree: NULL

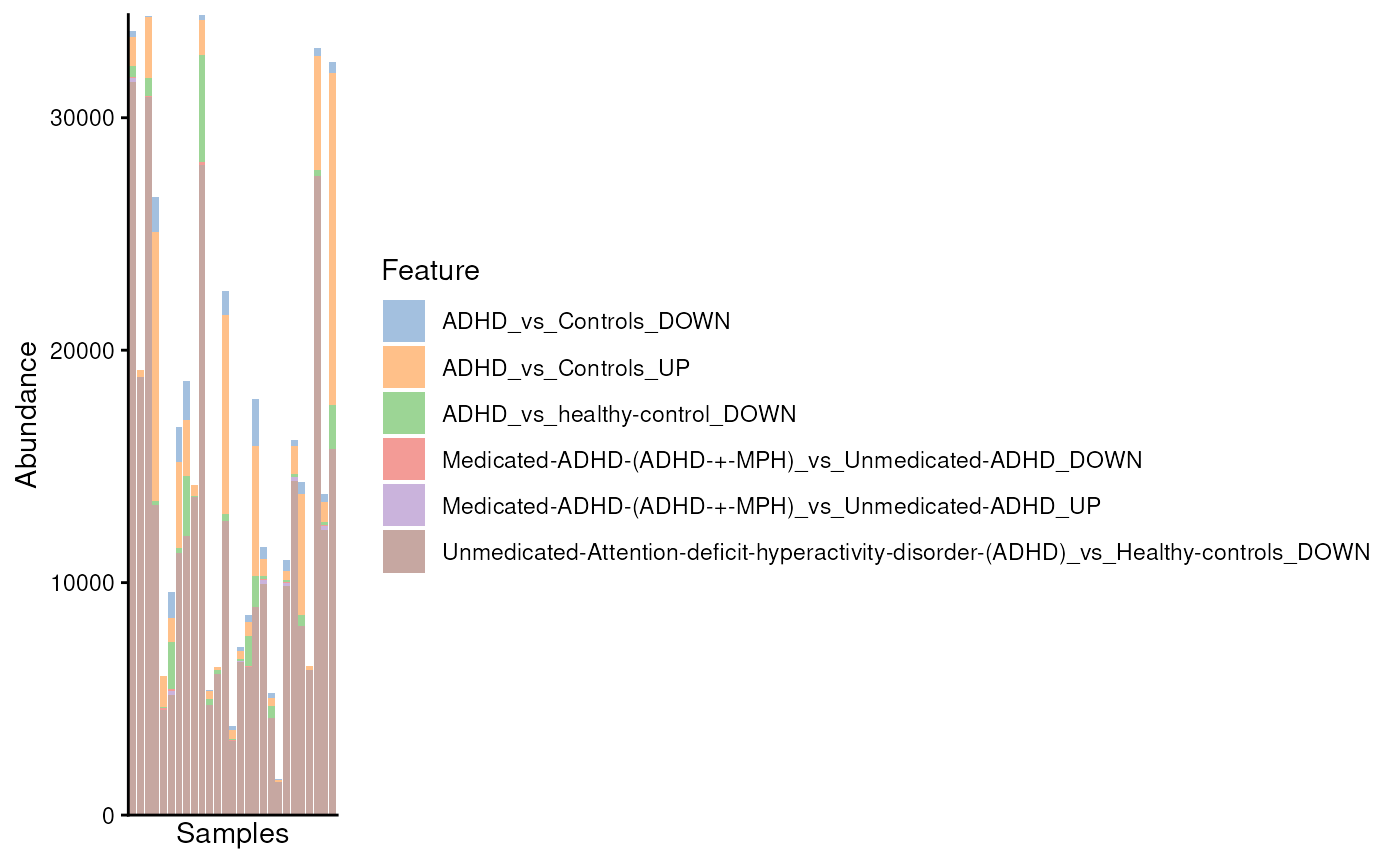

plotAbundance(modules)
#> Warning: Removed 37 rows containing missing values or values outside the scale range
#> (`geom_bar()`).

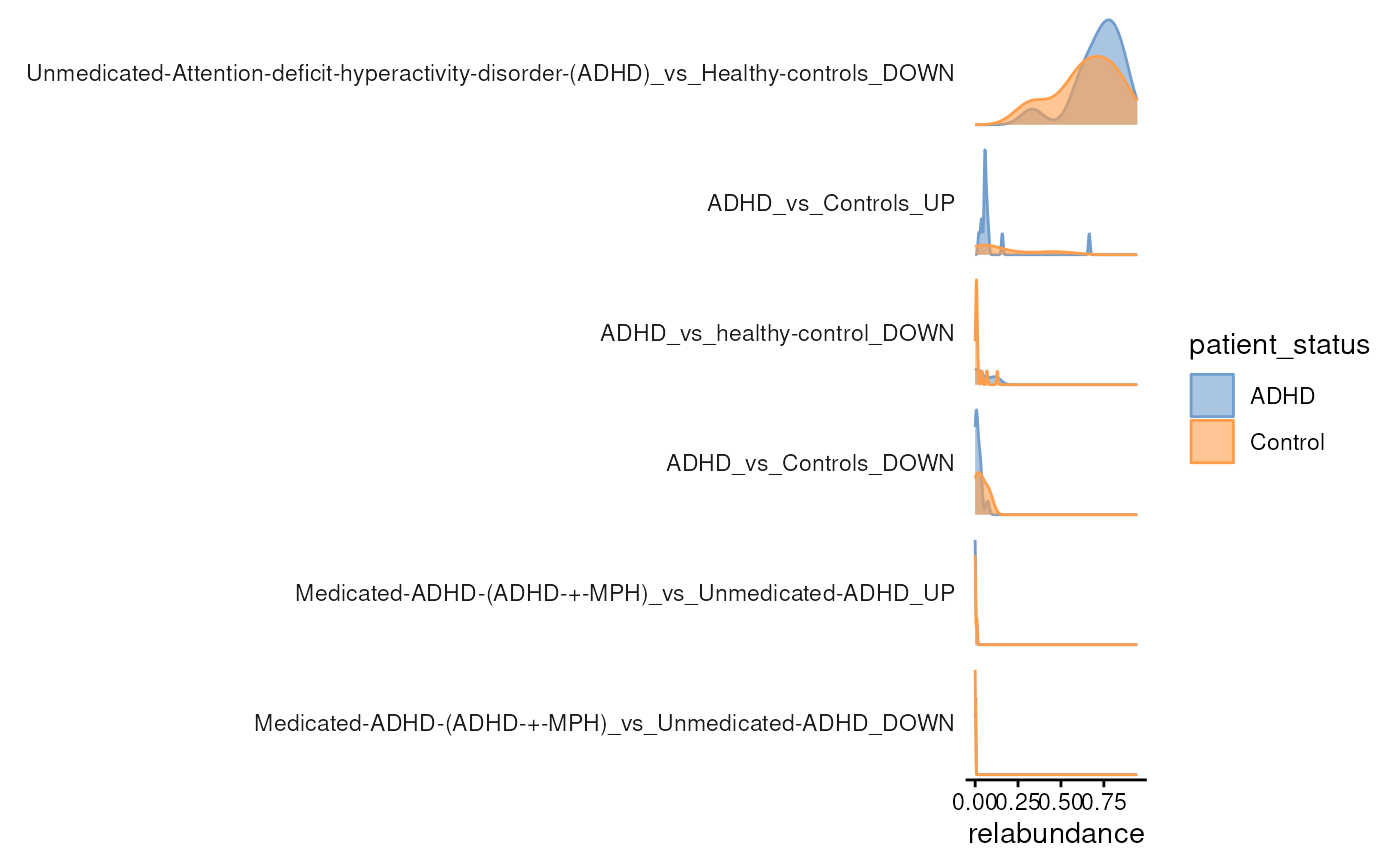

plotAbundanceDensity(
modules,
assay.type = "relabundance",
layout = "density",
colour.by = "patient_status"
)
idx <- apply(rowData(tse)[adhd.mods], 2L, function(x) which(x != 0L))
to_keep <- lengths(idx) != 0L
idx <- idx[to_keep]
adhd.mods <- adhd.mods[to_keep]

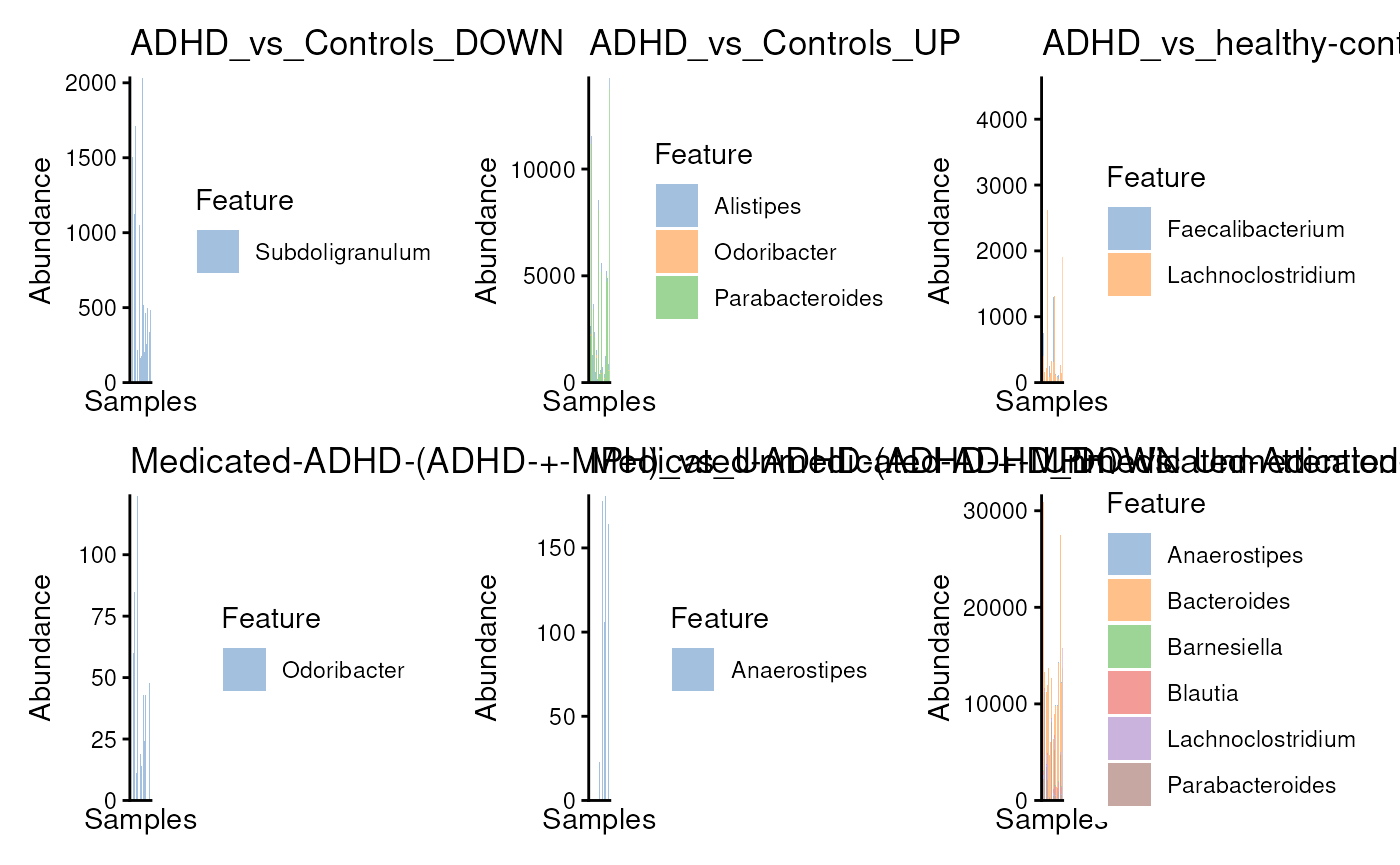

res <- lapply(
seq_along(adhd.mods),
function(i) plotAbundance(tse[idx[[i]], ]) + ggtitle(adhd.mods[i])
)
library(patchwork)
wrap_plots(res)
#> Warning: Removed 5 rows containing missing values or values outside the scale range
#> (`geom_bar()`).
#> Warning: Removed 16 rows containing missing values or values outside the scale range
#> (`geom_bar()`).
#> Warning: Removed 18 rows containing missing values or values outside the scale range
#> (`geom_bar()`).
#> Warning: Removed 12 rows containing missing values or values outside the scale range
#> (`geom_bar()`).
#> Warning: Removed 19 rows containing missing values or values outside the scale range
#> (`geom_bar()`).
#> Warning: Removed 46 rows containing missing values or values outside the scale range
#> (`geom_bar()`).
